FS 2000 Trigger Pull

[fooschnickens]

It's a bullpup. They all have wonky triggers.

[drcoffee]

So making the trigger smoother and lighter is what I have been working on. The AUG has a 10.75# trigger and I have been able to lower it to 8.5#. On my MSAR STG556 I have dropped the trigger from 8.5# to 6#. And just for fun I have shown that my STG will fire reliably with no reset issues at 3#s. Take a look at these videos.













I'm having the parts machined right now for the AUG and I need to buy a hammer group for the FS2000 for testing. I know this will also help the FN rifle. If someone can point me to a supplier for hammer packs, I would appreciate it.

In order to lower the pull 2+ Lbs I have not weakened the springs one bit. The point was to make a mod that maintains the safety of the rifle and improve the trigger at the same time. There's a good thread I started at AR15.com in the Bullpup section if you'd like to follow the progress. I'm trying to keep the price to $20 and so far it looks good.

To get to 3# you need something to reduce the spring tension. But at 3#s the rifle only takes a slap on the butt to discharge. This would good for benchrest but terrible for anything else.

[ninthinning]

drcoffee,
That is very interesting work you are doing. I am planning on buying an FS2000 but I am hesitant after reading the reviews on the web. It sounds like the trigger is a real kludge. I have seen pictures of the hammer group and it looks like the PS90 hammer group. The problem I see is the auto sear has been removed at the factory. If it still had the auto sear it would be possible to grind off the bolt trip and use the sear as a hammer sear by connecting it to the trigger. That would allow you to lighten the disconnector springs and hammer springs and should give a trigger pull weight of 4.5 pounds.
9th

[drcoffee]

drcoffee,
That is very interesting work you are doing. I am planning on buying an FS2000 but I am hesitant after reading the reviews on the web. It sounds like the trigger is a real kludge. I have seen pictures of the hammer group and it looks like the PS90 hammer group. The problem I see is the auto sear has been removed at the factory. If it still had the auto sear it would be possible to grind off the bolt trip and use the sear as a hammer sear by connecting it to the trigger. That would allow you to lighten the disconnector springs and hammer springs and should give a trigger pull weight of 4.5 pounds.
9th

I was originally of the mindset that softer springs would be the solution until it resulted in malfunctions ranging from reset issues to doubles which gets you a free ride in the squad car. I've seen guys shave the hammer spur too. All these make for a dangerous firearm. These bullpups require heavy springs to keep them from going bang at the wrong time. It's possible to get a soft trigger but the mass and design of the sear takes very little force to move it backward when bumped or dropped. With my product, I achieved a 6# trigger on my STG (8# trigger with an AUG hammer group) and I was able to drop the gun on the buttstock from 6-8" onto concrete and it did not discharge. Cool, eh? I need a video of that. Anyway, the fix also has to incorporate the safety factors designed originally by FNH and not just an end result. I did find out that FN does sell the hammer group for $258 and its in stock for anyone who wants to buy this part before a ban is enacted.

Is this the current hammer group for the FS2000?

[RaYhoLio]

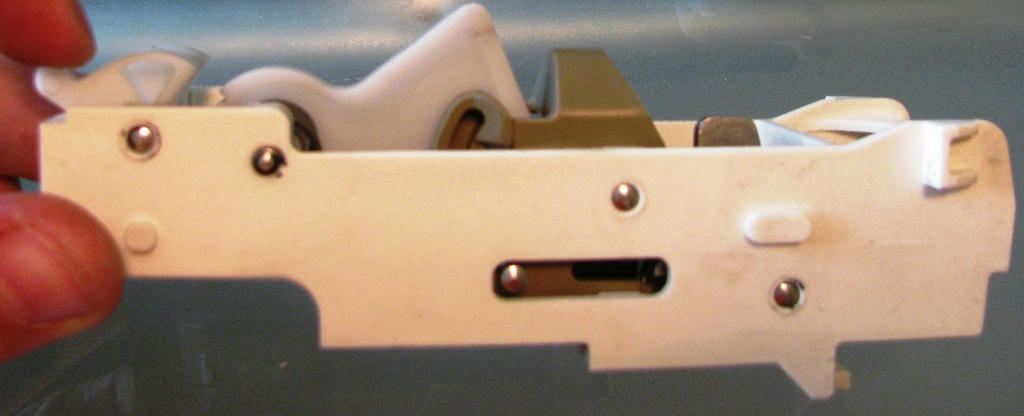

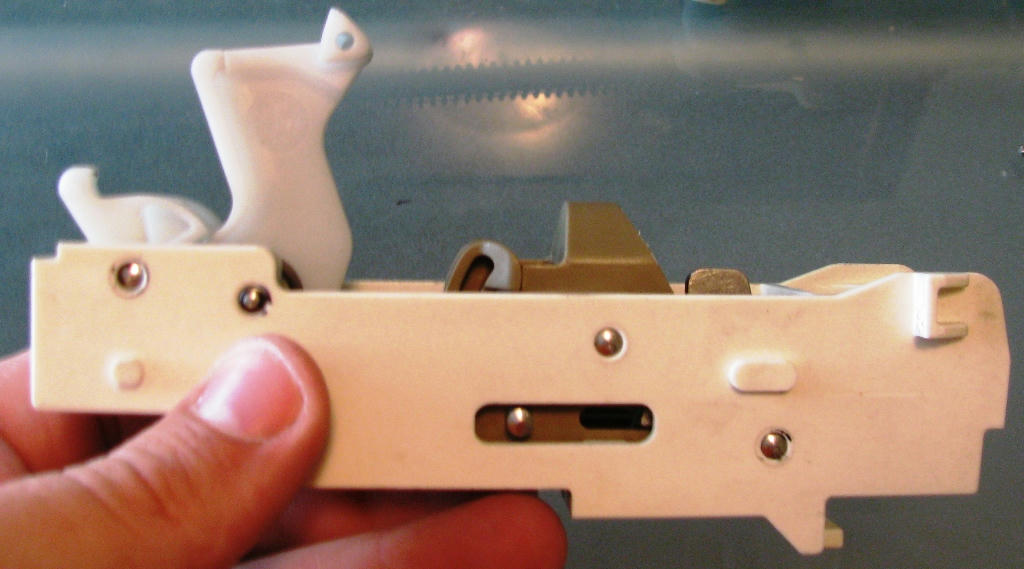

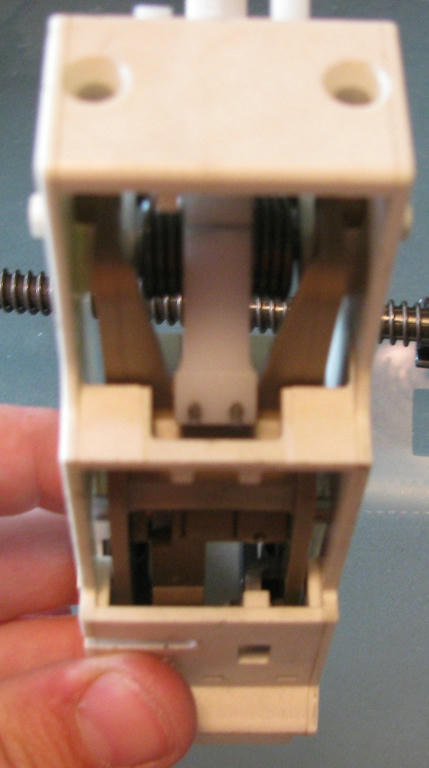

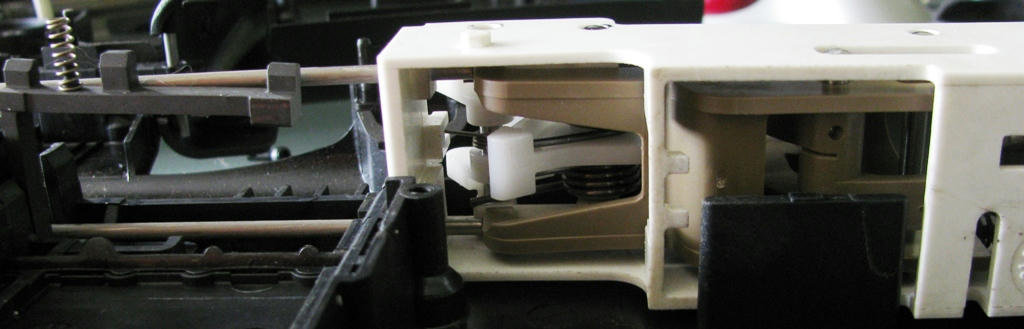

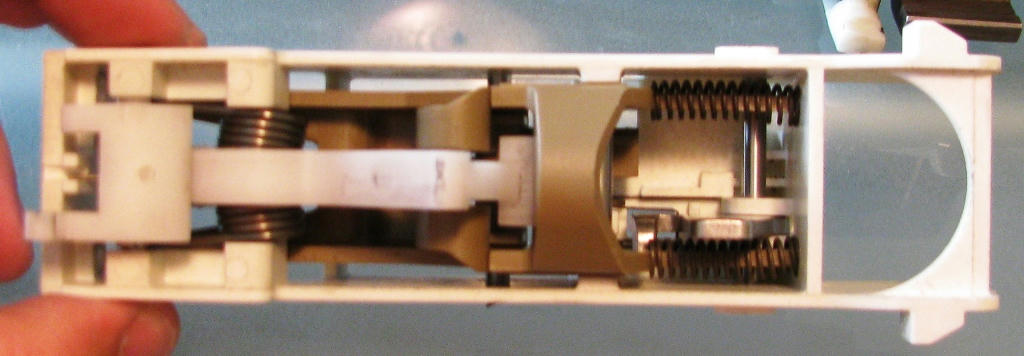

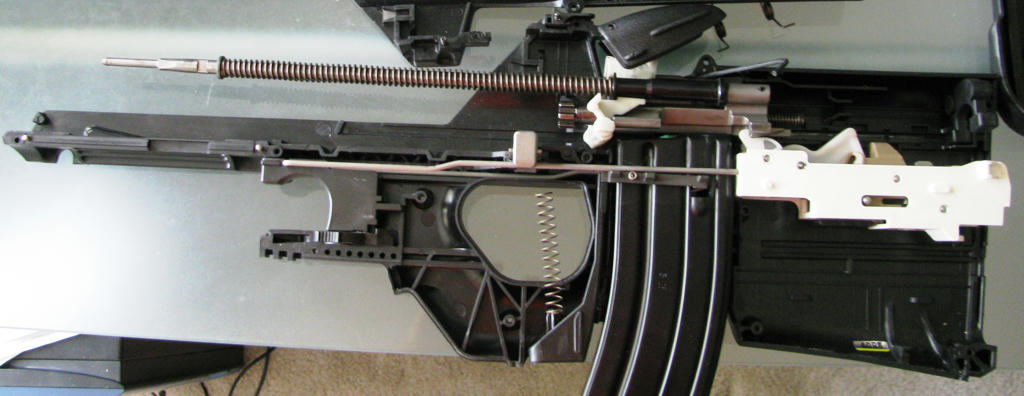

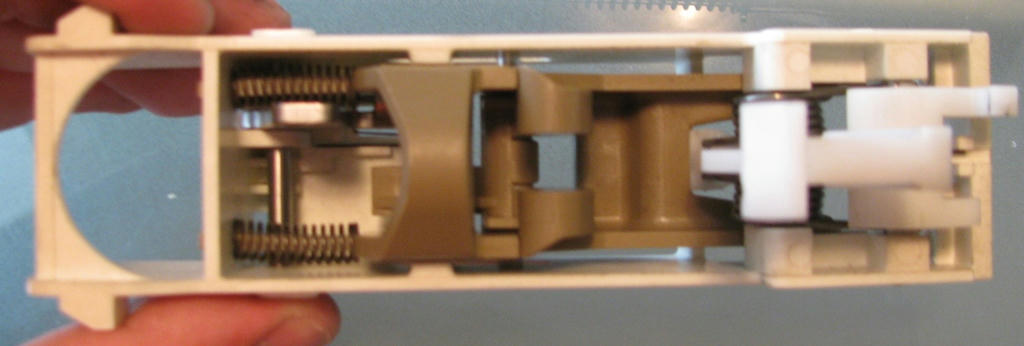

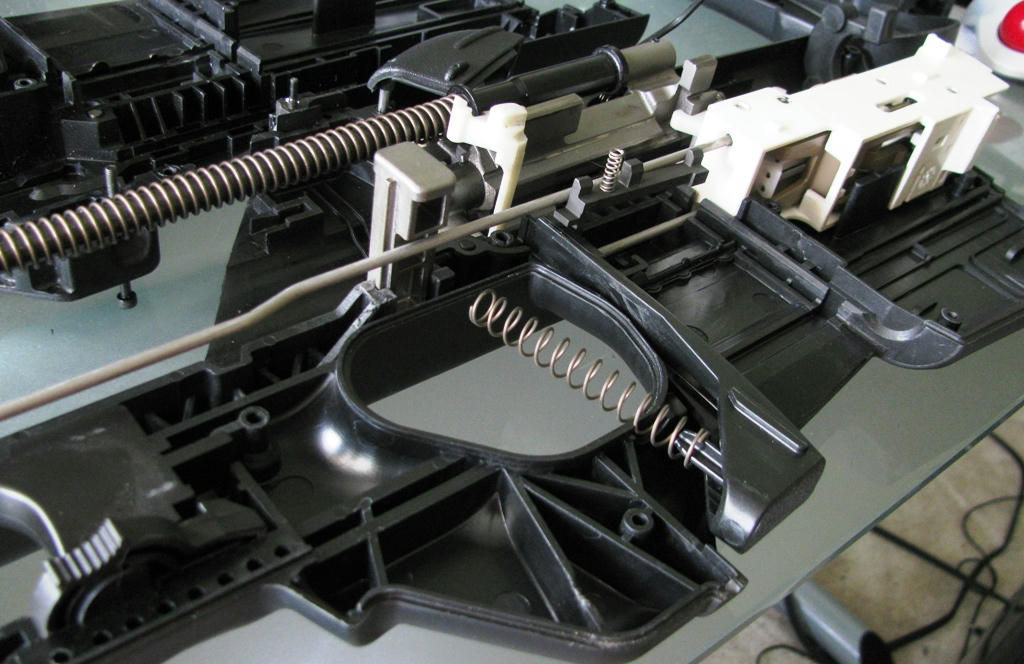

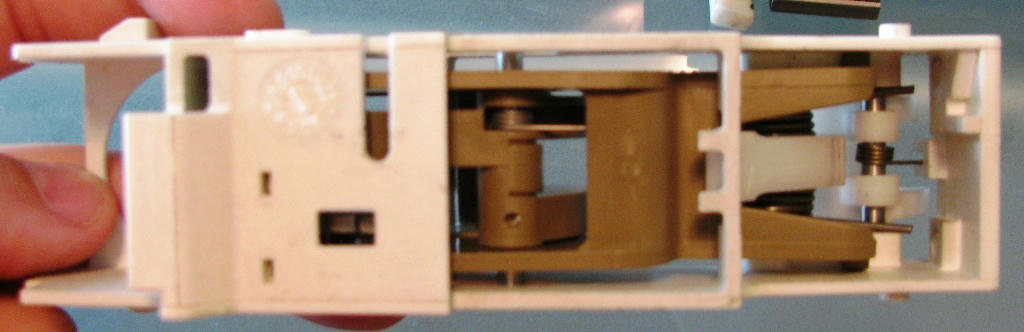

Just took a bunch of pics of my Fs2000 internals.. I'll see if I can figure out how to post 'em

[RaYhoLio]

I'd also be very interestd to know if these trigger packs have been changed in the same way the PS-90s were... if not, I might want to buy up some of the packs.. because mine has the same 'ability' as the older PS-90 packs... And if it hasn't been modified yet... it will be.

-Ray

[ninthinning]

Nice pictures. That might pretty simple to turn into a light two stage semi-automatic trigger. That would really increase the accuracy.
Thank you,
9th

[f3rr37]

I'd also be very interestd to know if these trigger packs have been changed in the same way the PS-90s were... if not, I might want to buy up some of the packs.. because mine has the same 'ability' as the older PS-90 packs... And if it hasn't been modified yet... it will be.

-Ray

This is a warning to tread lightly with statements like that, illegal modifications will result in removal from the forum.

[RaYhoLio]

This is a warning to tread lightly with statements like that, illegal modifications will result in removal from the forum.

No worries.. There will be no discussion of illegal modifications in open forum from me... Anyhow I was referring more to its collectibility as an investment.. I'm sure you've heard of dealer post samples? The people and business's who can legally make a post sample are very interested in the old PS-90 packs now.. making them a great investment... I was just curious if newer Fs-2000 have the same design as mine... I think mine is at least a few years old.. but since I got it used... I dunno for sure.

[f3rr37]

This is a warning to tread lightly with statements like that, illegal modifications will result in removal from the forum.

No worries.. There will be no discussion of illegal modifications in open forum from me...

Open forum or behind the scenes in PMs, it will not be tolerated anywhere on the forum.

[RaYhoLio]

Gosh.. I'd kinda like to start up another topic about the effectivness of bans on information and dangerous things .. but I won't get into that here.

LOL again.. no worries.. I'm in no hurry to become an accomplis to a firearms crime.

[f3rr37]

Gosh.. I'd kinda like to start up another topic about the effectivness of bans on information and dangerous things .. but I won't get into that here.

LOL again.. no worries.. I'm in no hurry to become an accomplis to a firearms crime.

Thank you.

[drcoffee]

I have a product that has truely done wonders for the Steyr AUG and the FS2000 has a very similar hammer group. The result so far is 3/4 Lbs lighter trigger pull and significantly smoother pull. The part is called neu-trigger and can be found with a google search. On the AUG I've been able to lower the pull weight by 2+ Lbs. This can be installed permanently but removed at any time to go back to the stock configuration.

For those of you looking for a more permanent change, Look at cutting 2 or 3 coils from each trigger spring at the forward end. Cut one coil from each and test in between until you like the pull weight. Since these hammer groups are riveted together, there's only so much you can do.

All I can say is wow! those are some strong trigger springs. :skep:

[RaYhoLio]

I have a product that has truely done wonders for the Steyr AUG and the FS2000 has a very similar hammer group. The result so far is 3/4 Lbs lighter trigger pull and significantly smoother pull. The part is called neu-trigger and can be found with a google search. On the AUG I've been able to lower the pull weight by 2+ Lbs. This can be installed permanently but removed at any time to go back to the stock configuration.

For those of you looking for a more permanent change, Look at cutting 2 or 3 coils from each trigger spring at the forward end. Cut one coil from each and test in between until you like the pull weight. Since these hammer groups are riveted together, there's only so much you can do.

All I can say is wow! those are some strong trigger springs. :skep:

Are you a forum sponsor now??

There's nothing riveted in this hammer group....

[drcoffee]

Actually, no. But I'm not selling them for the FS2000 yet. I'm looking for volunteers to test them.

So answer this. Can you push out the pivot pins or not? You sound certain that it has no rivets.

Those silver rods are the rivets.

[RaYhoLio]

Yep... check the pics above... those are pins.. not rivets.

I'm not exactly sure how your mod would work... but there are at least 2 different (yet similar) hammer packs for the F2000... might require different mod kits.

[f3rr37]

Actually, no. But I'm not selling them for the FS2000 yet. I'm looking for volunteers to test them.

If you wish to sell your product on our forum, we require you to become a forum sponsor. But since you are just searching for volunteers at the moment, I don't have a problem with it. However, before you do decide to start selling, please contact jmz5 about becoming a forum sponsor.

Thanks

[drcoffee]

If you look closely at the ends of the pins they have been flattened. These pins have been expanded at their ends so they can't be removed. Technically that makes them rivets. The pins on my part can't be removed.

The part I'm talking about fits the brown plastic sear seen in the above picture. If your sear is different then I would need to rework the part to fit.

Cheers

[drcoffee]

If you wish to sell your product on our forum, we require you to become a forum sponsor. But since you are just searching for volunteers at the moment, I don't have a problem with it. However, before you do decide to start selling, please contact jmz5 about becoming a forum sponsor.

Thanks

Of course. Thank you.

[RaYhoLio]

Rivets are perminant... these are not.. These are straight flush push pins.. they are free floating, and neither side is flared in any way.. We are talking about the F2000 trigger group.. right? I don't know much about the AUG.

Those pics above were taken by me, and I'm purty well familure with the trigger group now... this thing can dissasemble completely without the use of tools in about 5 minutes...
